NeviTec NTS100 | 5-Sided Large-Format Architectural Lighting

A monolithic, five-sided illumination system designed for seamless large-scale integration.

NEVITEC NTS100 LIGHT PANEL

The NT-S100 redefines the standard for ceiling and wall integration. Built upon the proprietary Nevitec Architectural Profile, this luminaire moves beyond the constraints of traditional flat panels. By activating its side profiles as luminous surfaces, the NT-S100 renders a weightless, volumetric "block of light" that eliminates harsh frame shadows and beautifully softens spatial boundaries.

Engineered for the most exacting commercial and luxury environments, the NT-S100 accommodates flawless, joint-free spans of up to 5 meters. Pairing museum-grade color fidelity with a bespoke tensioned PVC diffuser, it delivers a perfectly homogeneous, shadow-free glow that elevates the surrounding architecture.

01

01. THE INFINITY EDGE

Pure Light. No Frame.

Traditional architectural lighting is confined by opaque metal borders. The NT-S100 breaks this boundary. Engineered with the proprietary Nevitec Invisible Profile, we utilize a 3D-tensioning system that wraps the luminous membrane around the exterior of the frame.

The Result: Penta-Surface Illumination.

  • Volumetric Presence: The panel glows from the front face and all four vertical edges.

  • The "Floating" Effect: Because the edges are luminous, the fixture appears to hover weightlessly in space.

  • Ceiling Wash: The side-emitting light casts a soft glow onto the ceiling above, reducing contrast and eliminating the "cave effect" typical of standard downlights.

A luminous surface that defies gravity

NeviTec

NTS100

NeviTec Architactral Light

NEVITEC NTS100 5SIDE LIGHT GLOW

02

02. UNBOUNDED DIMENSIONS

5 metres. Zero Seams.



Architects frequently compromise design due to manufacturing constraints. We have removed these limitations. The NT-S100 can be manufactured as a single, seamless luminous block up to 5000mm x 5000mm (5m x 5m) or in continuous longitudinal runs of any length.



  • No Joinery: A pristine, uninterrupted surface.

  • No Grid Lines: Pure architectural clarity.

03

NTS100 Light Panel

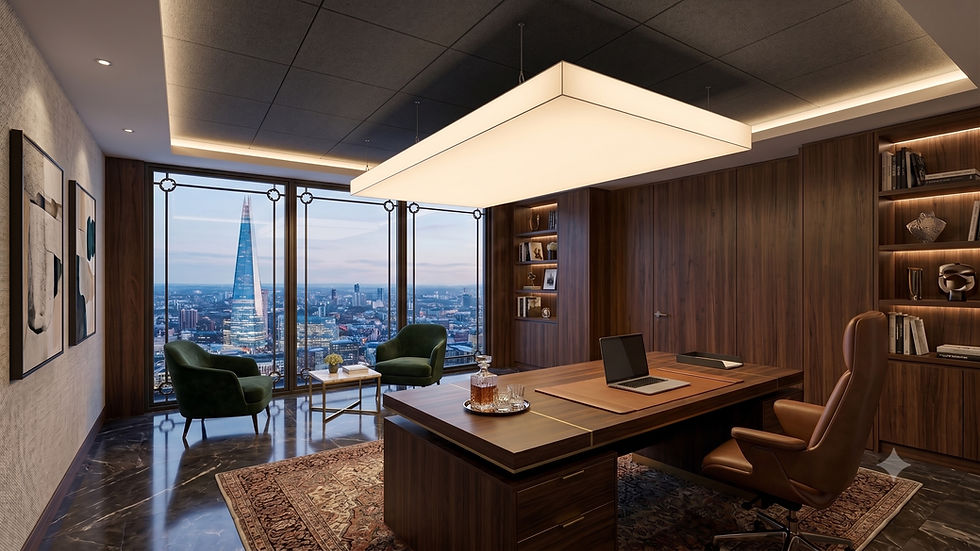

NEVITEC NTS100 LIGHT IN OFFICE

04

03. HIGH-FLUX DENSITY (100W/m²)

Power Meets Precision.

​

Designed for high-volume spaces (atriums, showrooms, double-height lobbies), the NT-S100 High-Output configuration delivers an industry-leading 100 Watts per Square Meter.

  • High Output: Capable of delivering 10,000+ lumens/m² for functional primary lighting.

  • Visual Comfort: Despite the immense power, the high-haze PVC diffuser softens the output to ensure a glare-free experience, even at maximum brightness.

05

04. CINEMATIC COLOR FIDELITY,DYNAMIC ATMOSPHERES

See the World as It Is.

Equipped with museum-grade emitters, the NT-S100 achieves a CRI of 98+.

  • True Reds (R9 > 90): Essential for skin tones, timber, and textiles.

  • Consistent White: 3-Step MacAdam Ellipse binning ensures perfect color matching across massive surfaces.

  • Tunable White: Sync with the sun (2700K – 6500K) for circadian rhythm support.

  • Pixel Mapping: Activate the 5-sided surface with flowing motion gradients using Pixel LED technology (SPI/DMX).

  • RGBW: Full spectrum immersion for branding and events.

Electrical & Optical Specifications

NEVITEC NTS100 SMART LIGHT

Parameter

Specification

System Profile

Nevitec Proprietary Aluminum Alloy Extrusion

Light Source

High-Density 24V LED Matrix

CRI / Color Quality

CRI >98 (Static White)

Dynamic Options

RGBW / Tunable White / Addressable Pixel

Lumen Output

Up to 150W per m² (High Output)

Dimming Protocols

DALI-2, DMX512, 0-10V, SPI (Pixel)

Luminous Surface

5-Sided Illumination (1x Front Face + 4x Side Edges)

Max Seamless Size

Width: Up to 5000mm (5m) | Length: Up to 5000mm+

Select the engine that matches your project's functional and atmospheric goals.

  • Color Rendering: CRI 98+ / TLCI 99

  • Binning: 3-Step MacAdam Ellipse for consistent color temperature.

  • Temperatures: Available in 2700K, 3000K, 4000K, and 6500K.

  • Best For: Museums, high-end fashion retail, automotive showrooms.

Option A: Static Ultra-Fidelity (The Purist's Choice) Designed for color-critical environments where clarity and accuracy are paramount.

  • Tunable White: Seamless transition from warm candlelight (2700K) to cool daylight (6500K).

  • RGBW Color Mixing: Full-spectrum color mixing with a dedicated White chip for true pastels.

  • Control: DALI Type 8 (DT8) or DMX compatible.

Option B: Dynamic Spectrum (RGB & Tunable White) For environments requiring circadian rhythms or atmospheric shifts.

  • Pixel LED Technology: Individually addressable LED nodes allow for flowing gradients and organic motion.

  • Mapping: Direct compatibility with Madrix and other pixel-mapping software via SPI/DMX.

  • Best For: Nightlife venues, atrium centerpieces, brand experience centers.

Option C: Pixel Matrix (Digital Media) Transform the surface into a low-resolution video screen or dynamic motion feature.

NEVITEC NTS100 PANEL

INSTALLATION GUIDE: SUSPENSION INTERFACE

1. PROFILE ANATOMY (CRITICAL)
The Nevitec profile is engineered with two distinct points. You must identify them correctly before fixing.

    • POINT 1 (The Structural Core): The inner channel.

      • FUNCTION: Holds the weight.

      • ACTION: Attach Suspension Here.

    • POINT 2 (The Tension Perimeter): The outer rim.

      • FUNCTION: Holds the PVC Membrane.

      • ACTION: DO NOT TOUCH. Drilling or clamping here will destroy the light seal.

2. INSTALLATION STEPS (WIRE SYSTEM)
STEP 1: INSERT Locate the T-Slot Channel on the top of Point 1 (Structural Core). Insert the Nevitec Sliding Gripper Block into the channel.
STEP 2: POSITION Slide the Gripper Block along the rail to align perfectly with your ceiling suspension drop wire.
STEP 3: LOCK Tighten the Locking Collar on the gripper.

  • Action: As you tighten, the T-Nut rotates 90° inside the channel, biting into the aluminum.

  • Check: Pull up firmly on the gripper to ensure it is mechanically locked.

STEP 4: LEVEL Feed the stainless steel aircraft cable through the Clutch Plunger.

  • To Raise: Push the cable through (it auto-locks).

  • To Lower: Depress the pin on top of the gripper to release the lock mechanism.
